1746-OA16 SLC500 Discrete AC output module

1746-OA16

1746-OA16 is a Digital AC output module designed for use with the SLC500 controller family. This output modules provides 120-240VAC nominal voltage output with voltage range of 85-264VAC at a frequency of 47-63 Hz.
This module is a Triac output module that is configured using the RSLogix 500 programming software. It may be installed as a local and remote I/O module of any SLC500 Programmable Logic Controllers (PLC) processor or CompactLogix and ControlLogix Programmable Automation Controllers (PAC). There is no limit to the number of installation instances of this module as long as the system power supply is capable of supplying the required current of each module installed in the same chassis. Specifically, the 1746-OA16 has a Current draw of 0.316 A. This module occupies a single slot of the controller chassis and consumes 16-bit I/O memory.
The 1746-OA16 comes with Two (2) output groups with each group having Eight (8) channels. Each channel of this module has an output Current of 0.50 A @ 30 °C (86 °F) and 0.25 A @ 60 °C (140 °F) with continuous output per module of 8.0 A @ 30 °C (86 °F) and 4.0 A @ 60 °C (140 °F). It has an On-sate voltage drop of 1.50V @ 0.50 A and surge Current per point of 10.0 A for 25 ms while the module’s load Current is 10 mA. The 1746-OA16 has an ON signal delay of 1 ms and OFF signal delay of 11.0 ms with OFF-state leakage Current of 2 mA.
The 1746-OA16 comes with removable terminal blocks that eliminate the need to disconnect wires when replacing any of the modules. The 1746-OA16 also includes filter circuitry and optical coupling for signal noise reduction. The 1746-OA16 module’s output values can be accessed by SLC 500 processors using Ladder Logic. Troubleshooting is made easier with the LED indicators that show output status values. The SLC 500 system uses a sharing-based hardware platform which includes several combinations of digital and analog I/O, saving costs and space. The 1746-OA16 is intended for use in an environment with a 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) operating temperature range and 5 to 95% noncondensing relative humidity.






Main Brands

1. Siemens: S-200, S-300, S -400,S-1500, S5,Siemens Moore

2. Allen Bradley: ControlLogix 1756 series PLC , CPU, A/O, I /O, Power supply, Touch Screen, CompactLogix 1769 series, SLC 500 1747/1746 series, PLC-5 1771/1785 series

3. ABB: AC800M series controller, I/O module, AC800F series Controller moulde, 800xA series module, Bailey INFI 90 module, DSQC robot module and parts, Advant OCS system parts

4. TRICONEX (3009 3625 3721)

5. FOXBORO (FBM201 FBMSVH)

6. Modicon Premium,TSX Micro



About Our Company

New Source Automation Co., Ltd. located in the beautiful coastal city of xiamen. Spare parts for many years, is a professional engaged in large-scale system (centralized-distributed control system, programmable controller, redundant fault-tolerant control systems, robot control systems, servo control system, the large professional sales of world famous brand DCS system spare parts, with industrial automation for the main business,trade and industry set in the integration of the scientific research and development, technical innovation, engineering service center.



Product Packaging

1.For the in stock items, we will ship to you in 3-5 days after receiving the payment.

2.We can shipping all over the world via DHL,UPS,FEDEX,TNT and EMS.

3. If you have shipping agent please tell us before shipment.

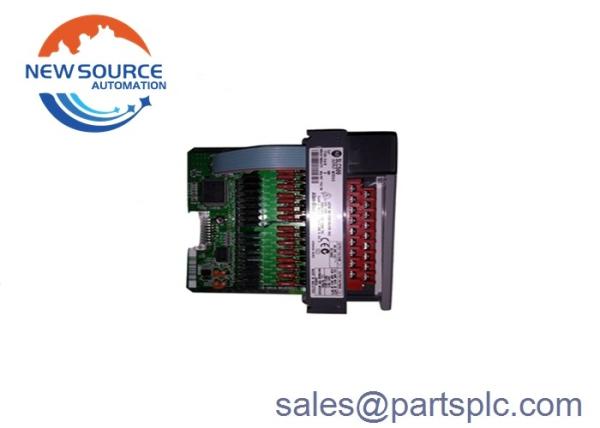

1746-OA16 SLC500 Discrete AC output module Images
